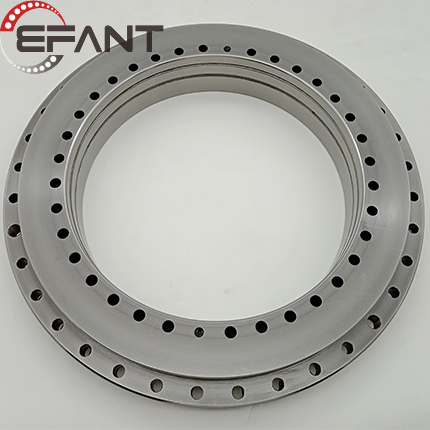

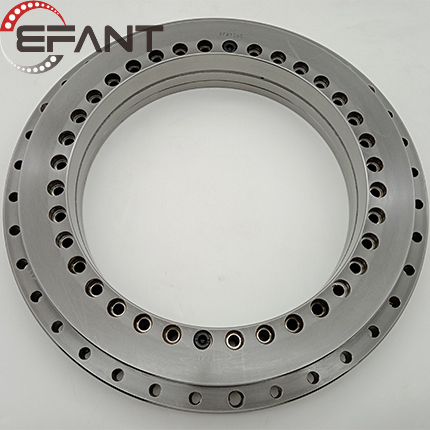

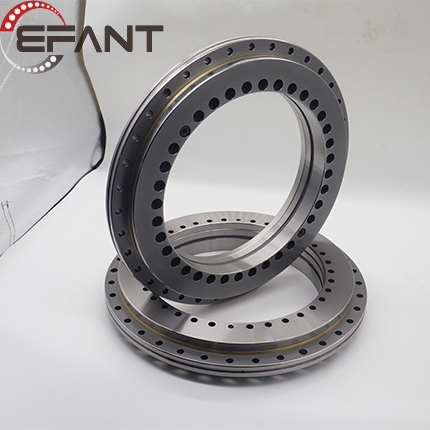

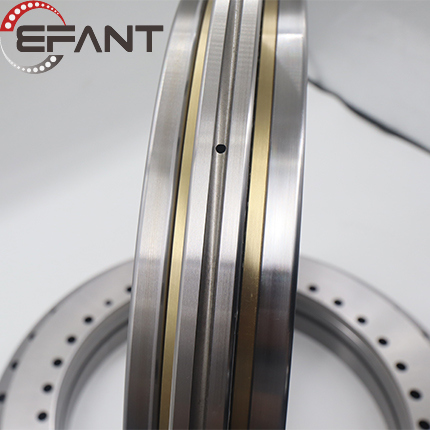

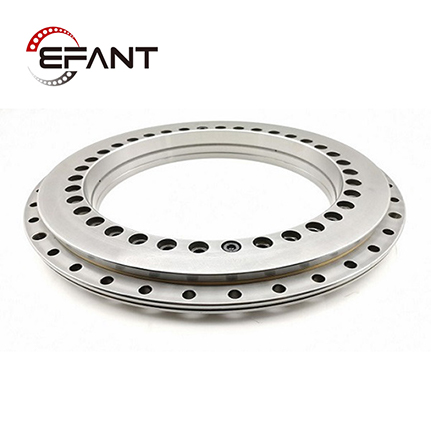

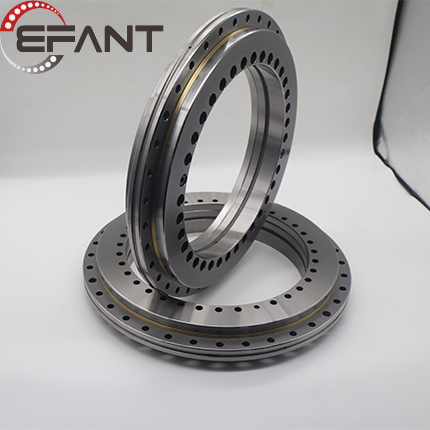

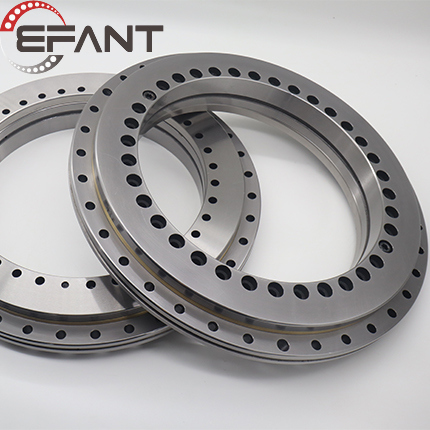

YRT260 Rotary Table Bearing

Super-precision axial-radial cylindrical roller bearings are commonly used to support rotary tables, indexing heads and multi-spindle heads on machining centres. Efant manufactures super-precision axial-radial cylindrical roller bearings for shaft diameters from 80 to 850 mm. Their internal design, together with close tolerance manufacturing processes, enables these bearings to attain radial run-out better than, and axial run-out close to, P4 tolerance class.

Bearing parameters

Model Inner Diameter Outside Diameter Bearing
height
Radial Load Axial Load
d(mm) D(mm) H(mm) Dynamic (KN) Static (KN) Dynamic (KN) Static (KN)
YRT260 260 385 55 140 355 168 1090
